LT XLPE Cables

The Current Rating mentioned in the below links are under Operating Conditions :
Maximum continuous operating conductor-temperature = 90°C
Standard ground temperature = 30°C
Ambient air temperature = 40°C
Thermal Resistivity of soil =150°C cm/watt
Depth of laying (for cables laid direct in ground) = 75 cms

METHOD OF INSTALLATION :
Multi core cables installed independently.
Single Core Cables : a) Three cables laid in a trefoil touching each other. b) Three cables laid flat touching.

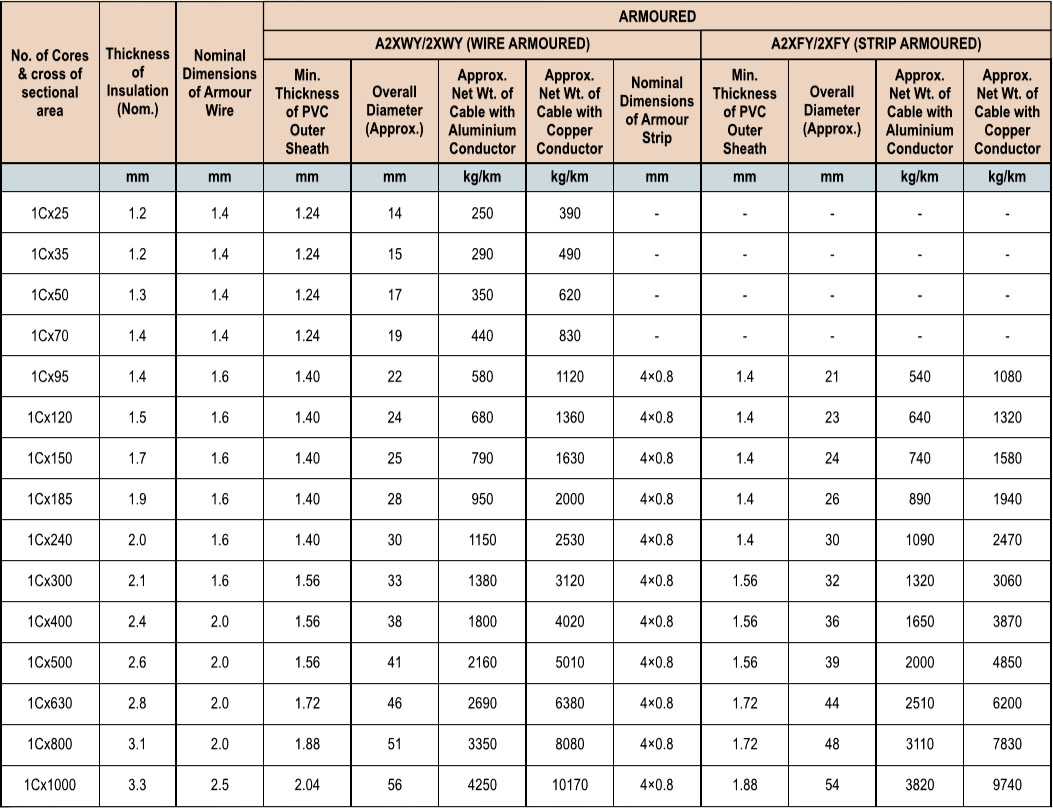

1 CORE 1.1 KV ALUMINIUM/COPPER XLPE ARMOURED POWER CABLES

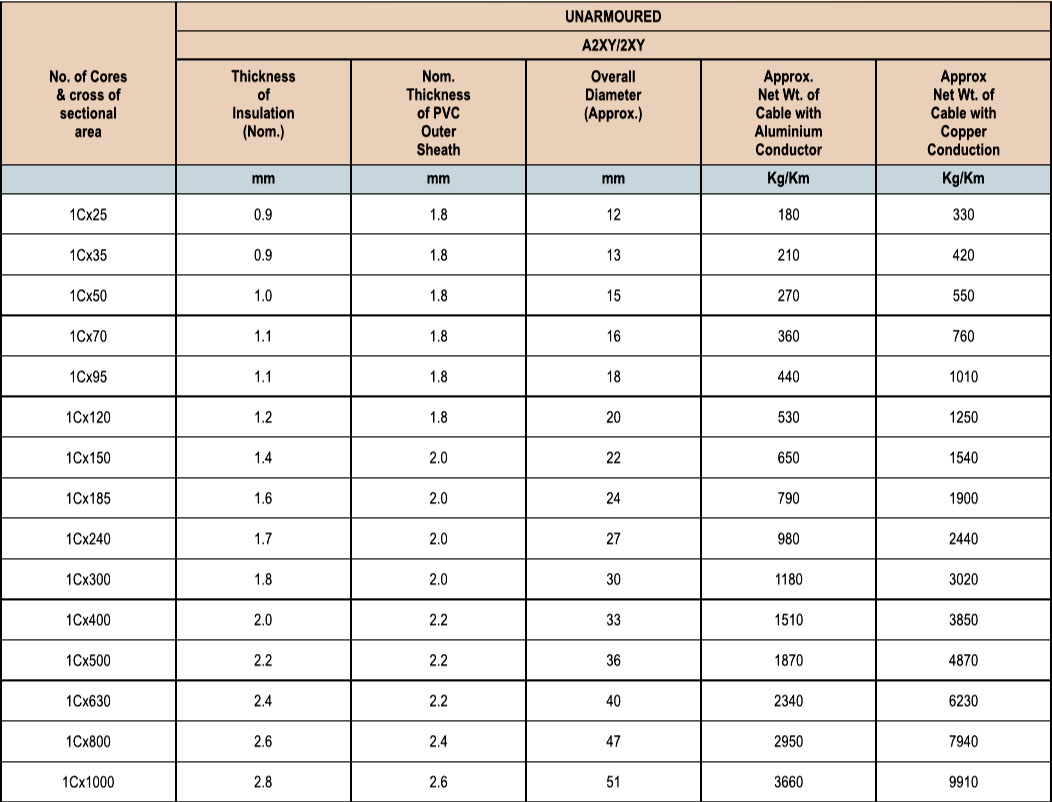

1 CORE 1.1 KV ALUMINIUM/COPPER XLPE UNARMOURED POWER CABLES

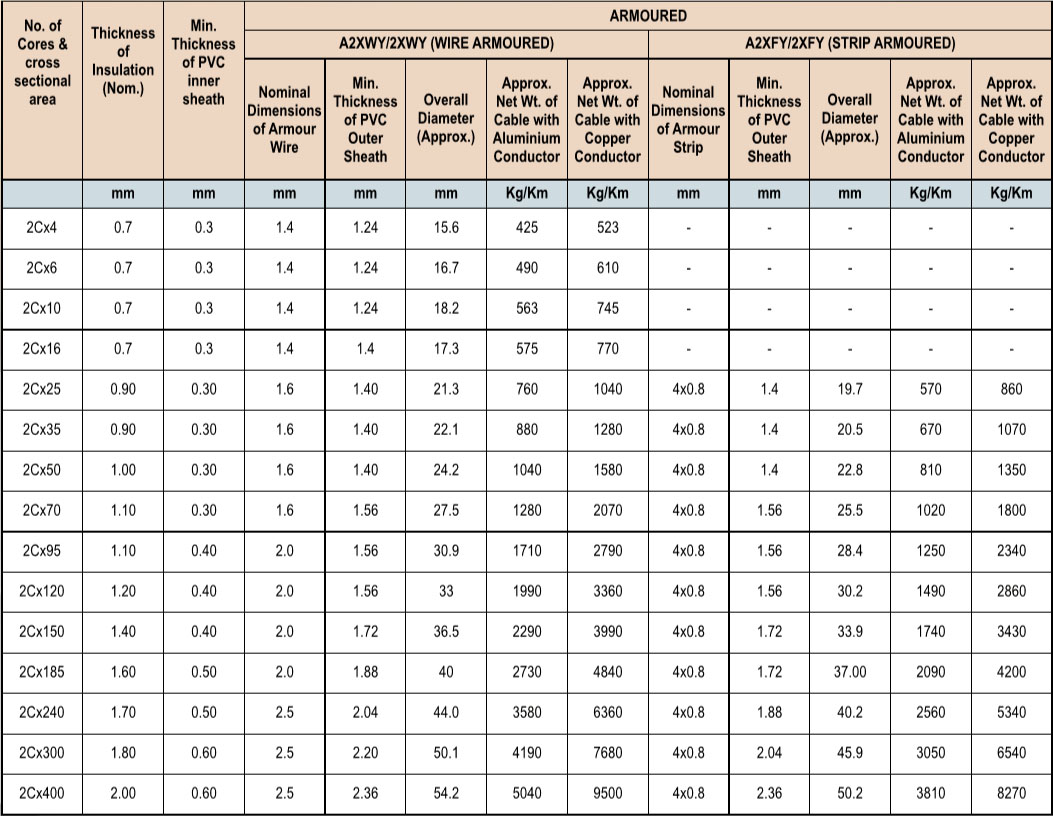

2 CORE 1.1 KV ALUMINIUM/COPPER XLPE ARMOURED POWER CABLES

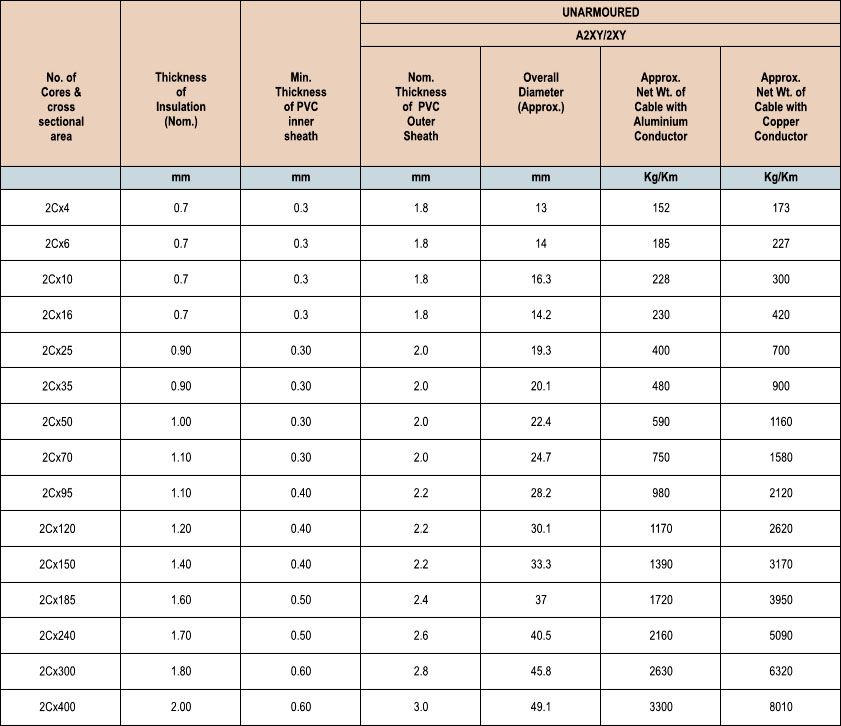

2 CORE 1.1 KV ALUMINIUM/COPPER XLPEUNARMOURED POWER CABLES

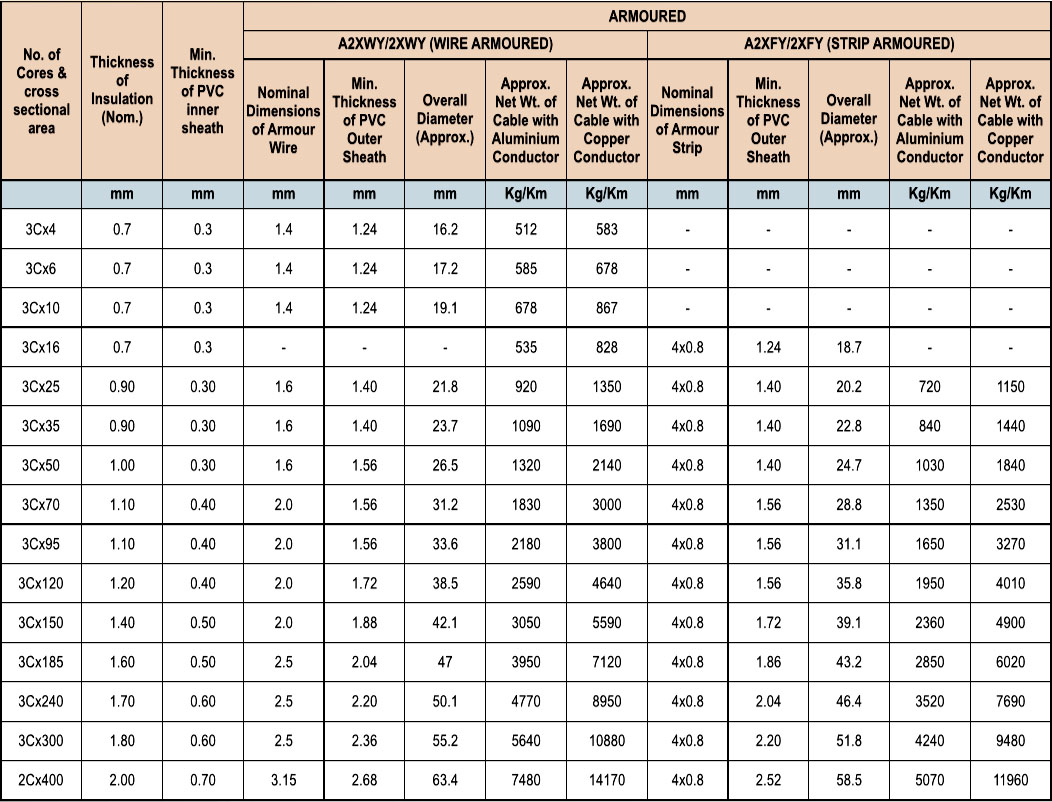

3 CORE 1.1 KV ALUMINIUM/COPPER XLPE ARMOURED POWER CABLES

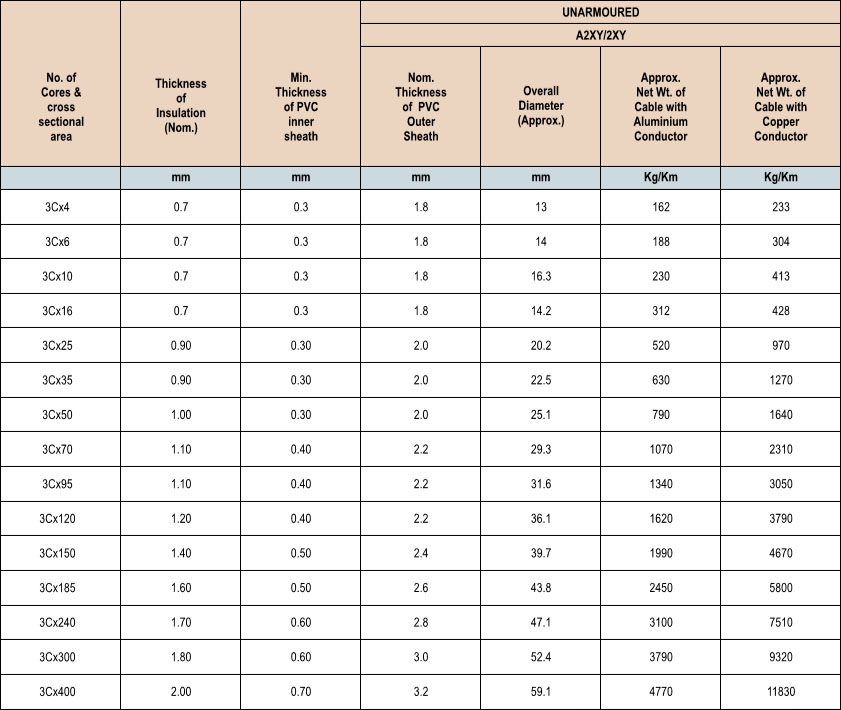

3 CORE 1.1 KV ALUMINIUM/COPPER XLPE UNARMOURED POWER CABLES

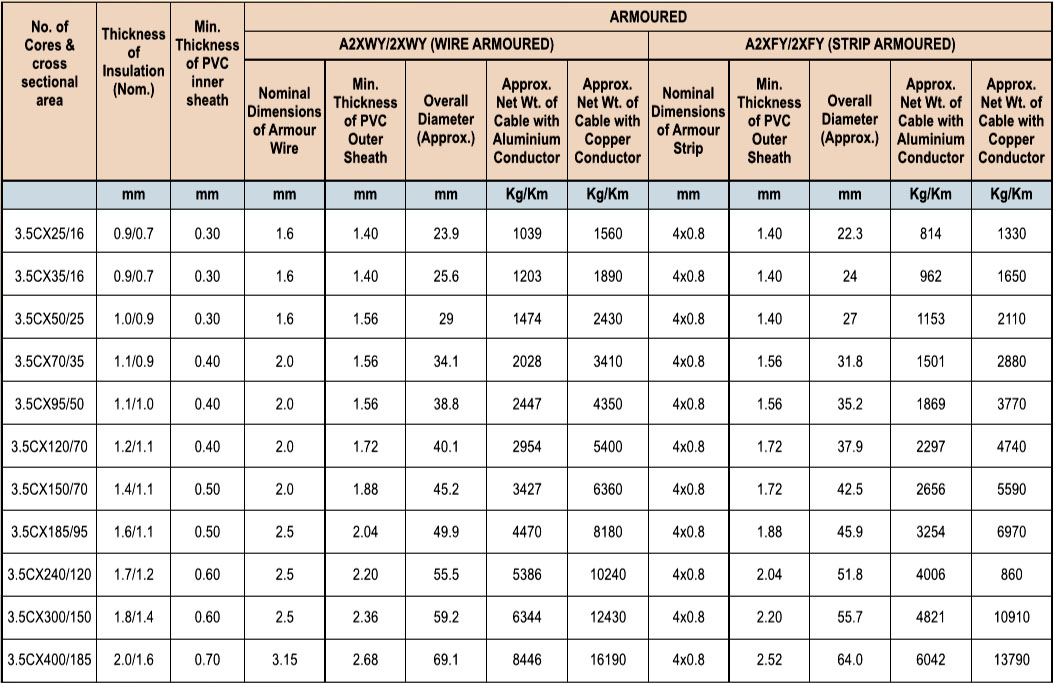

3.5 CORE 1.1 KV ALUMINIUM/COPPER XLPE ARMOURED POWER CABLES

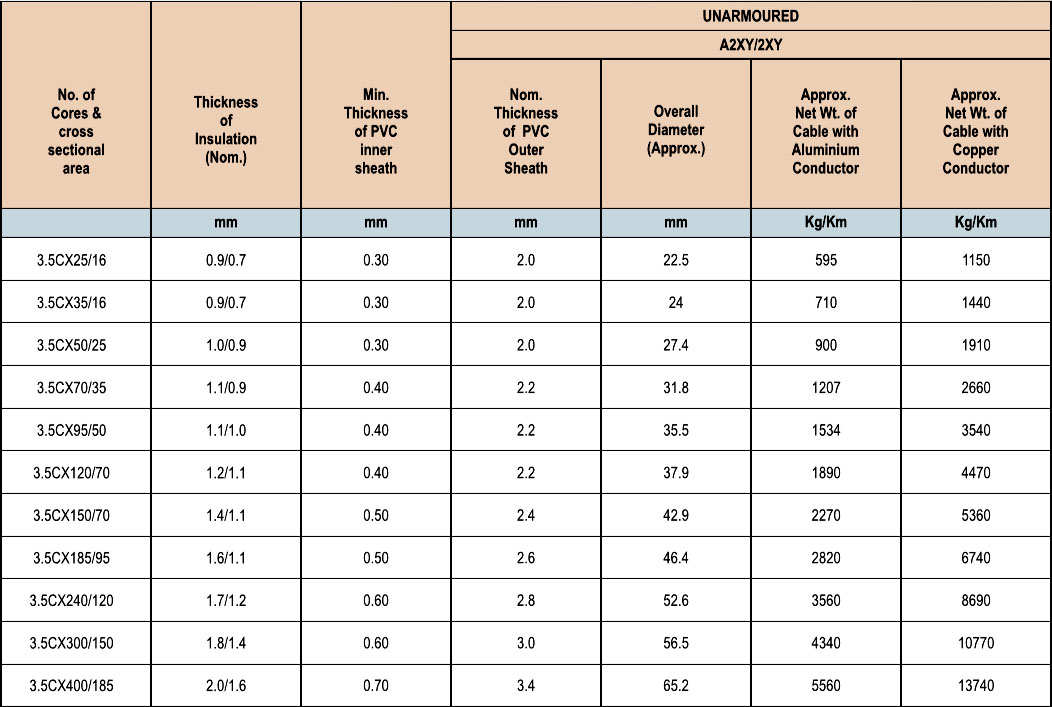

3.5 CORE 1.1 KV ALUMINIUM/COPPER XLPE UNARMOURED POWER CABLES

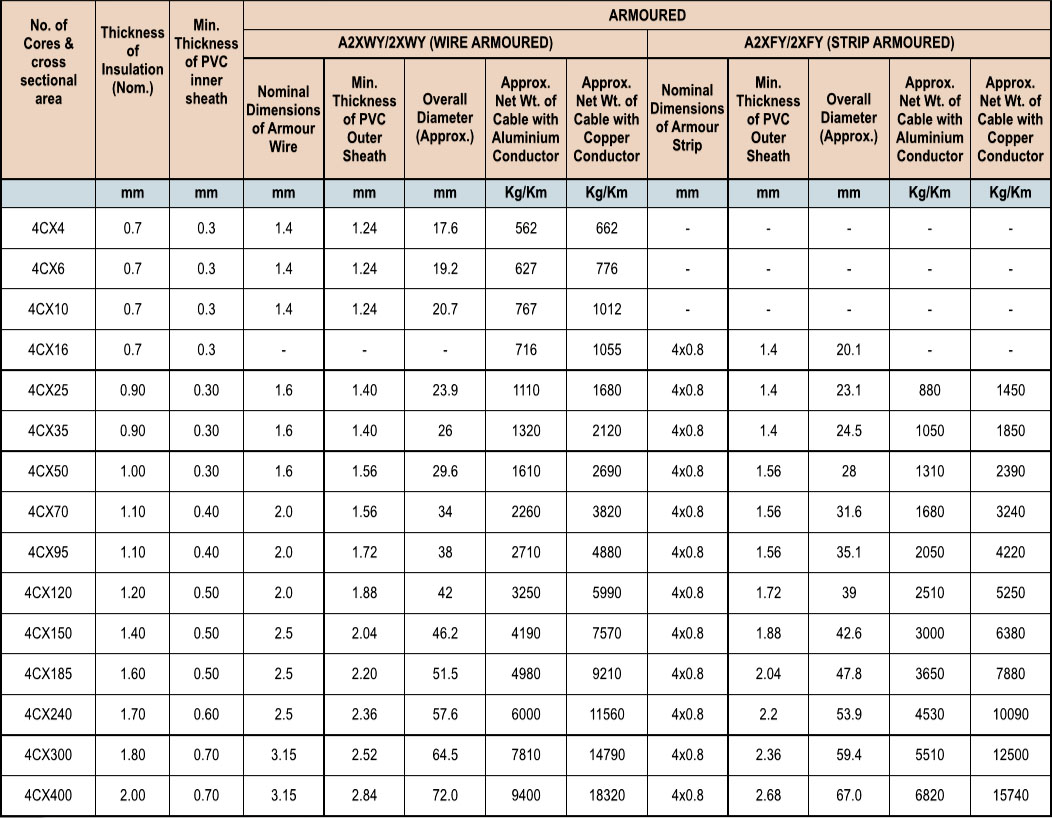

4 CORE 1.1 KV ALUMINIUM/COPPER XLPE ARMOURED POWER CABLES

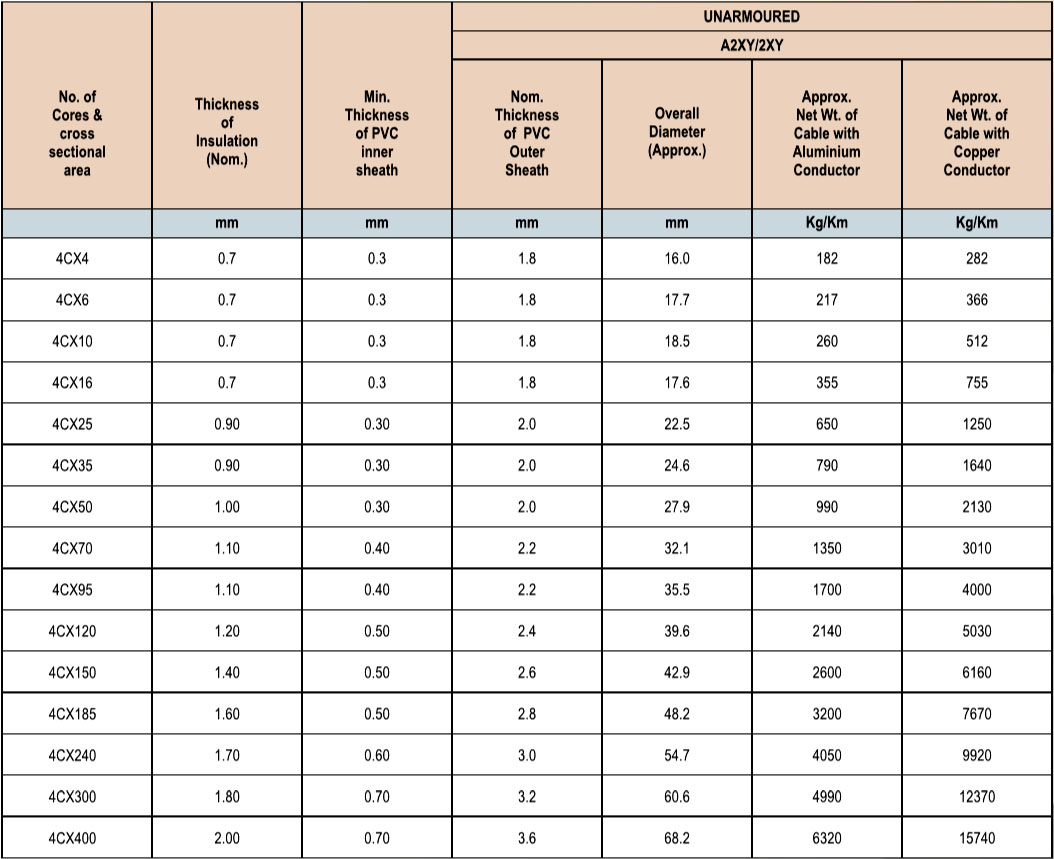

4 CORE 1.1 KV ALUMINIUM/COPPER XLPE UNARMOURED POWER CABLES

COPPER CONDUCTOR ARMOURED XLPE INSULATED CONTROL CABLES OF 1.5 SQ. MM

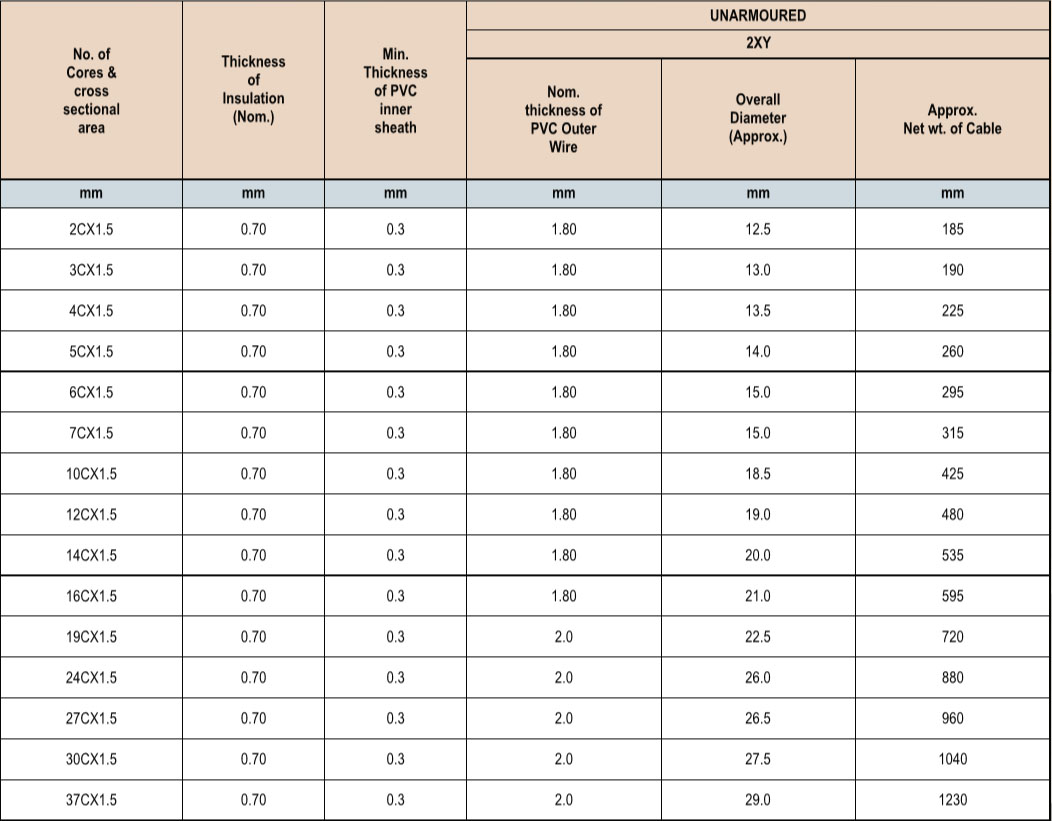

COPPER CONDUCTOR UNARMOURED XLPE INSULATED CONTROL CABLES OF 1.5 SQ. MM

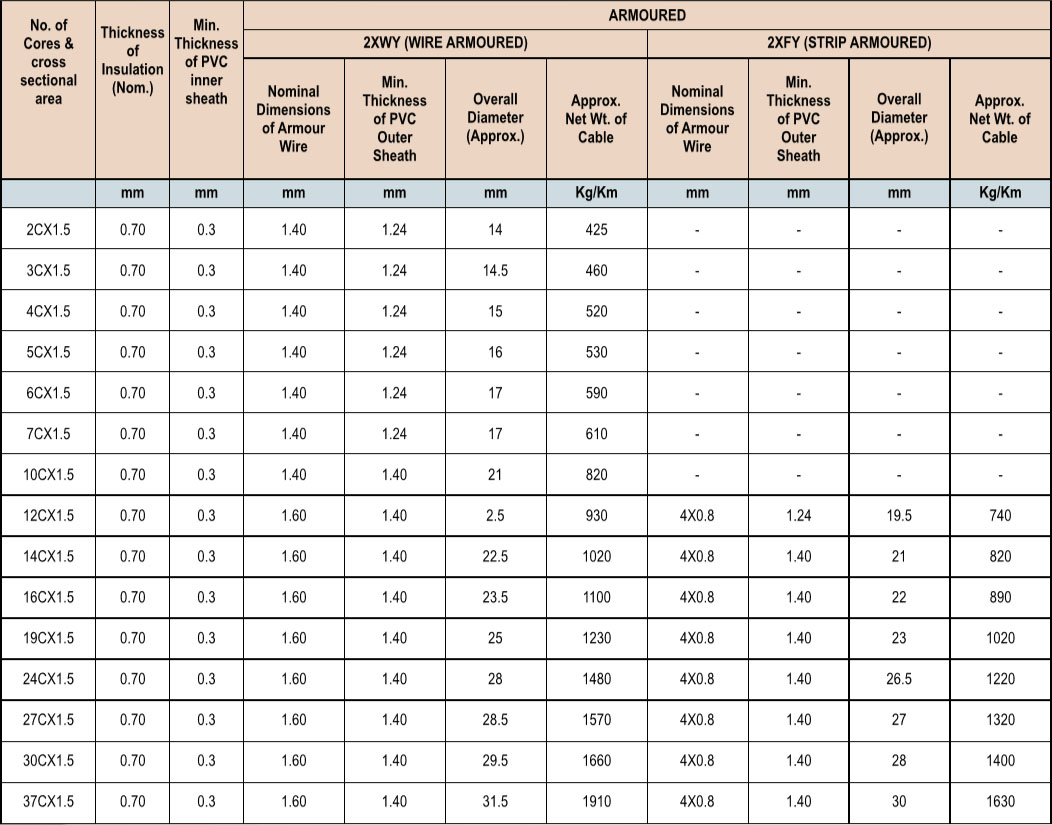

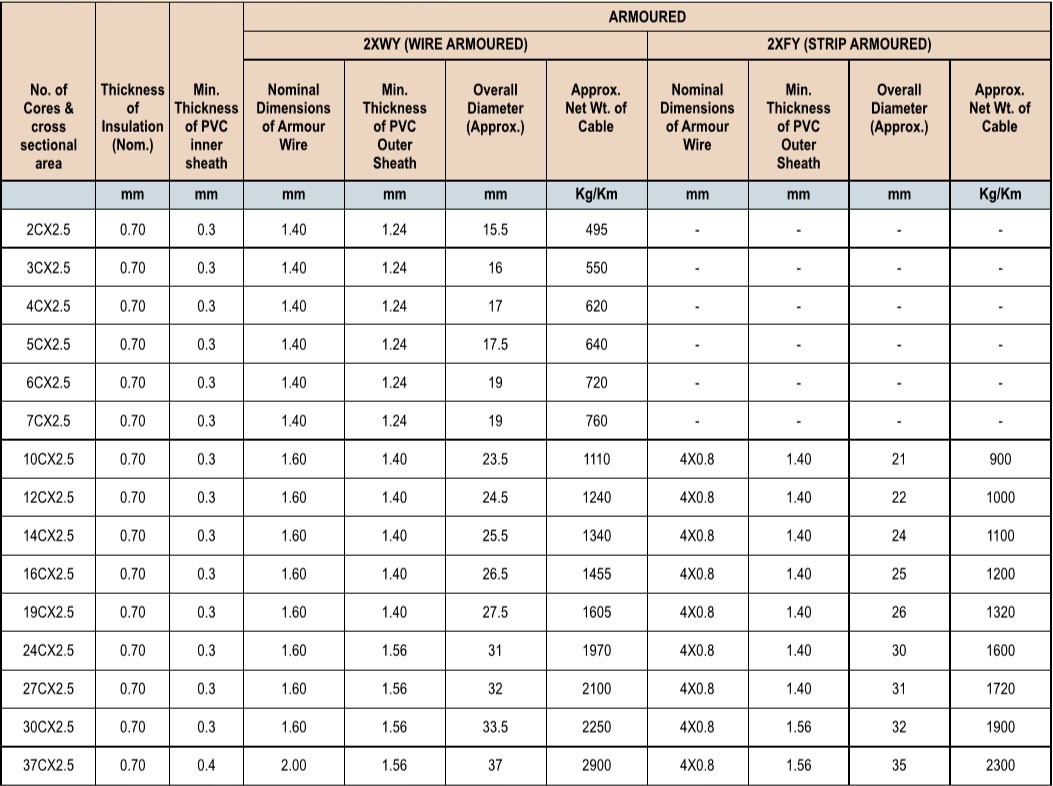

COPPER CONDUCTOR ARMOURED XLPE INSULATED CONTROL CABLES OF 2.5 SQ. MM

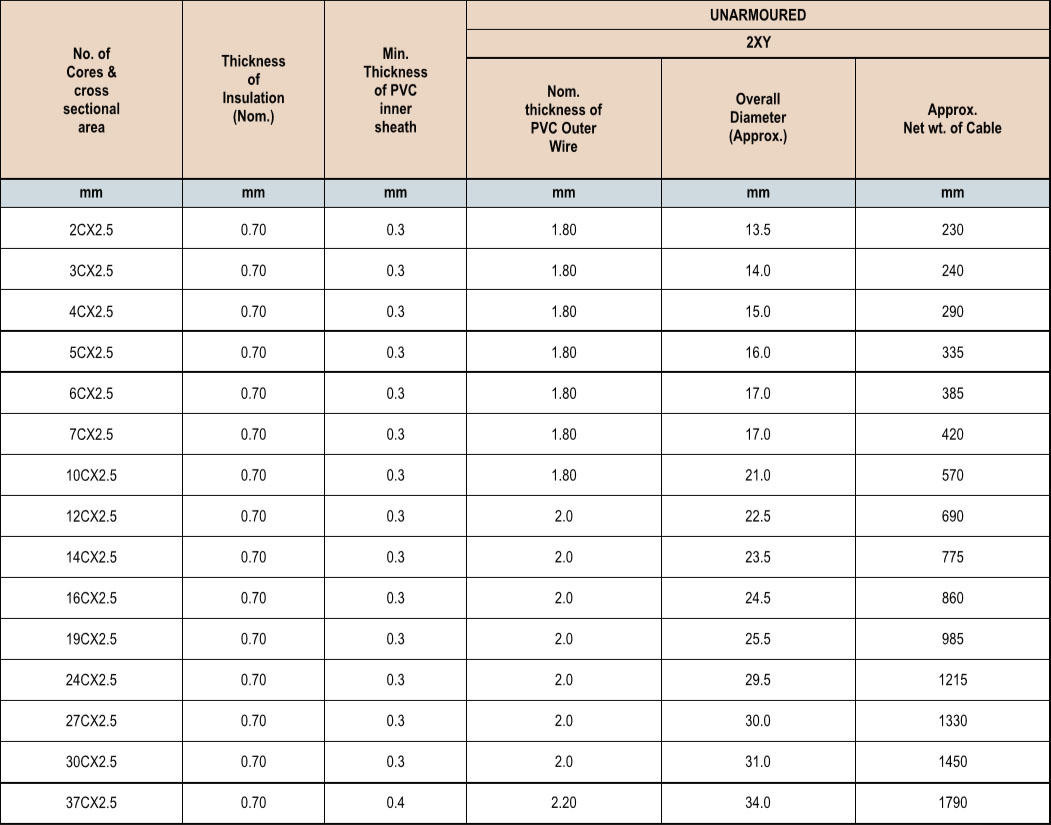

COPPER CONDUCTOR UNARMOURED XLPE INSULATED CONTROL CABLES OF 2.5 SQ. MM

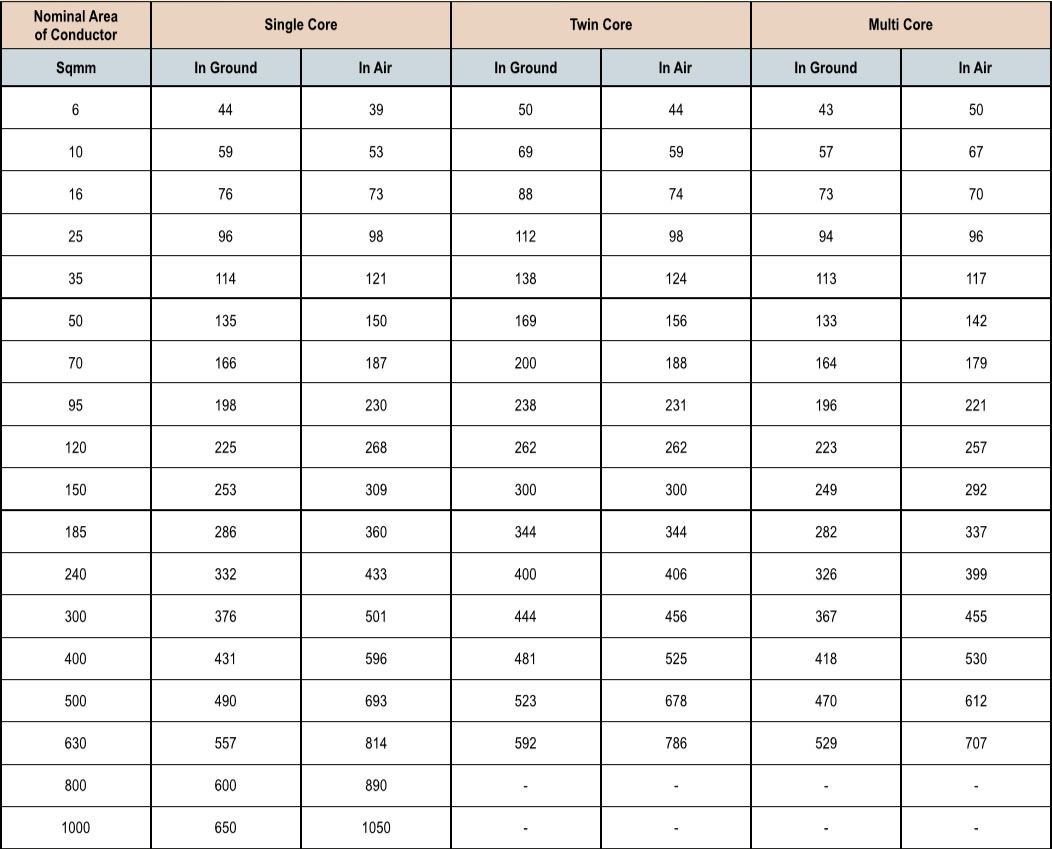

CURRENT RATING OF 1.1 KV XLPE INSULATED ALUMINIUM CONDUCTOR CABLES(IN AMP)

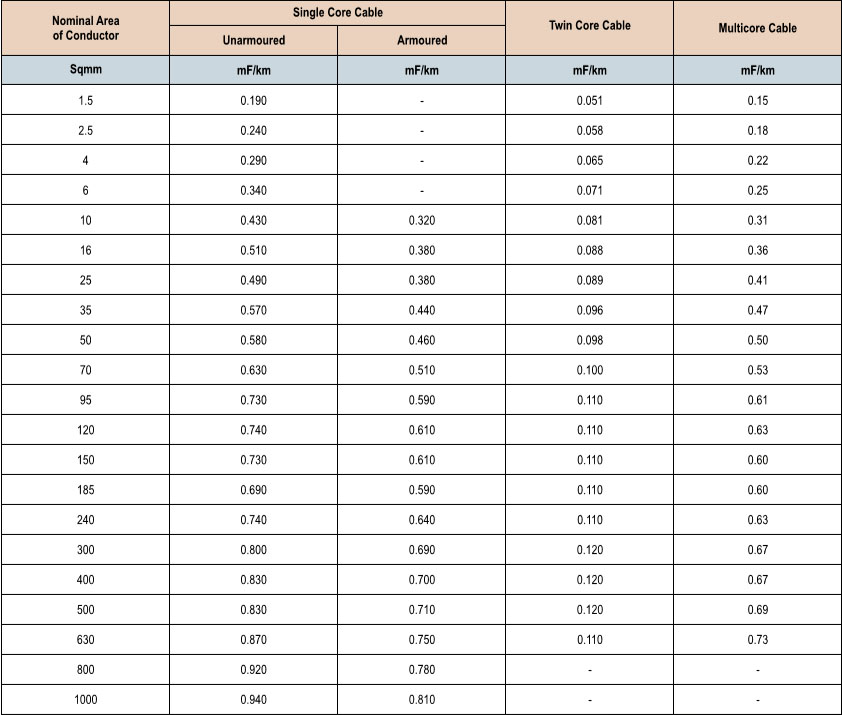

CAPACITANCE (MICRO FARADS/KM) OF 1.1 KV GRADE XLPE INSULATED CABLES

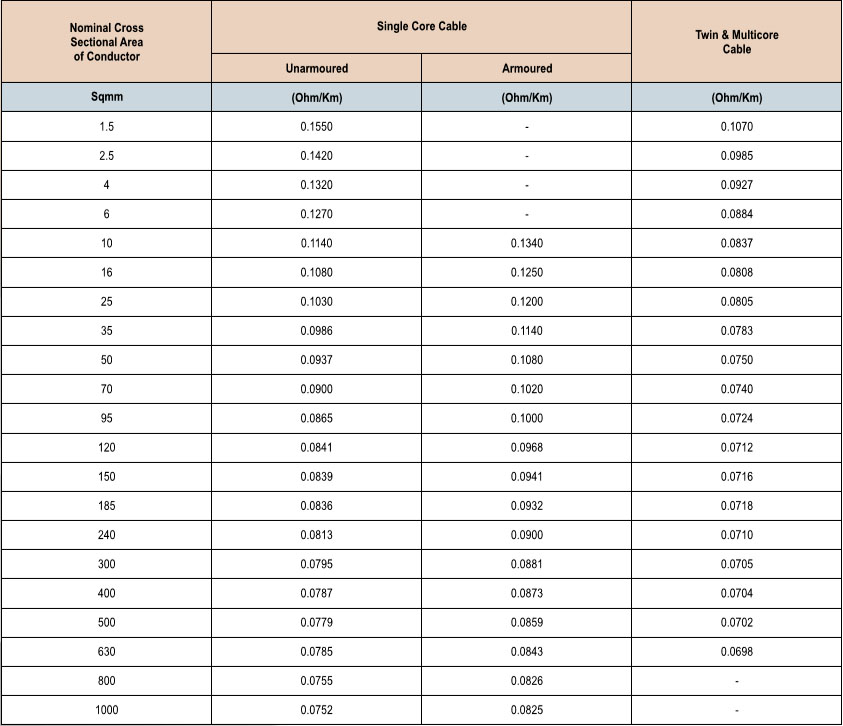

REACTANCE OF 1.1 KV GRADE XLPE INSULATED CABLES AT 50HZ

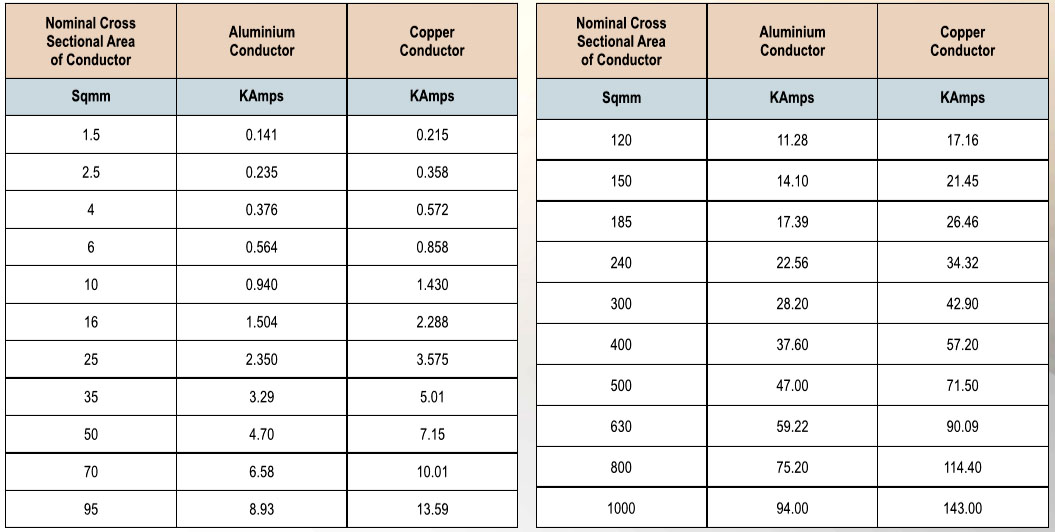

SHORT CIRCUIT RATING FOR XLPE INSULATED CABLES (FOR DURATION OF ONE SECOND)

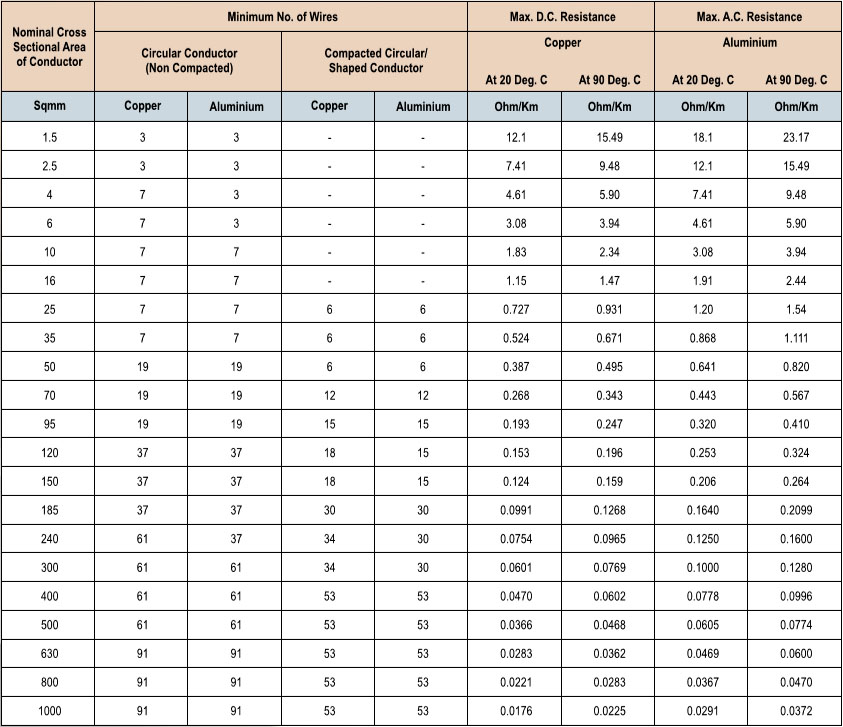

MAXIMUM AC/DC RESISTANCE OF CONDUCTOR FOR XLPE CABLES IN OHM/KM

RATING FACTORS FOR VARIATION IN AMBIENT AIR TEMPERATURE

RATING FACTORS FOR VARIATION IN GROUND TEMPERATURE FOR CABLES LAID DIRECT IN THE GROUND
