LT PVC Cables

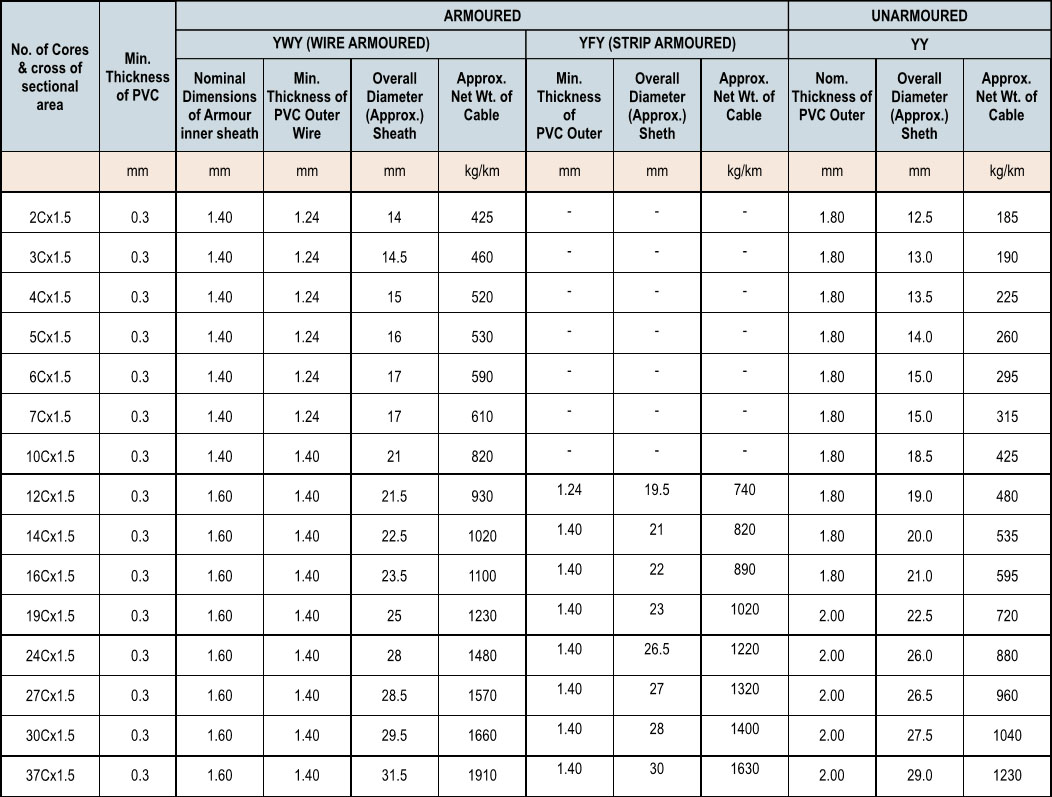

PVC INSULATED ARMOURED/UNARMOURED CONTROL CABLES 1.5 SQ.MM

1. Insulation Thickness is 0.80mm (Nom) for all cables.
2. Strip Dimension is of 4x0.80 mm.

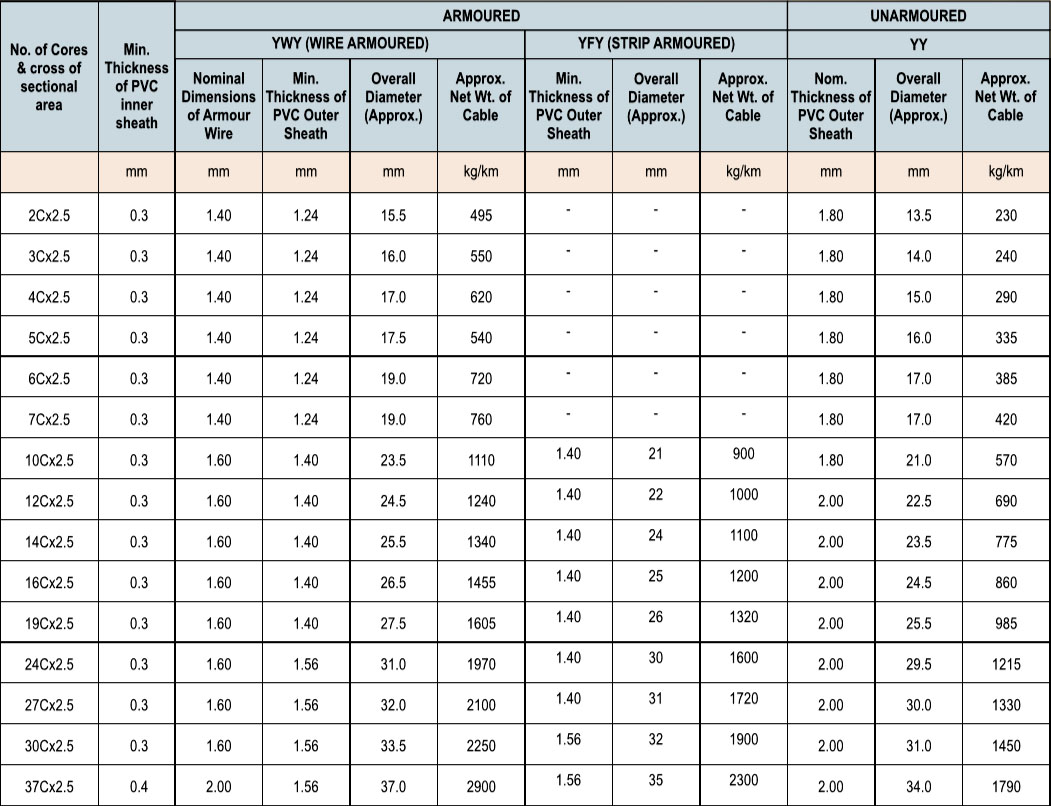

COPPER CONDUCTOR PVC INSULATED ARMOURED/UNARMOURED CONTROL CABLES 2.5 SQ.MM

1. Insulation Thickness is 0.90mm (Nom) for all cables.
2. Strip Dimension is of 4x0.80 mm.

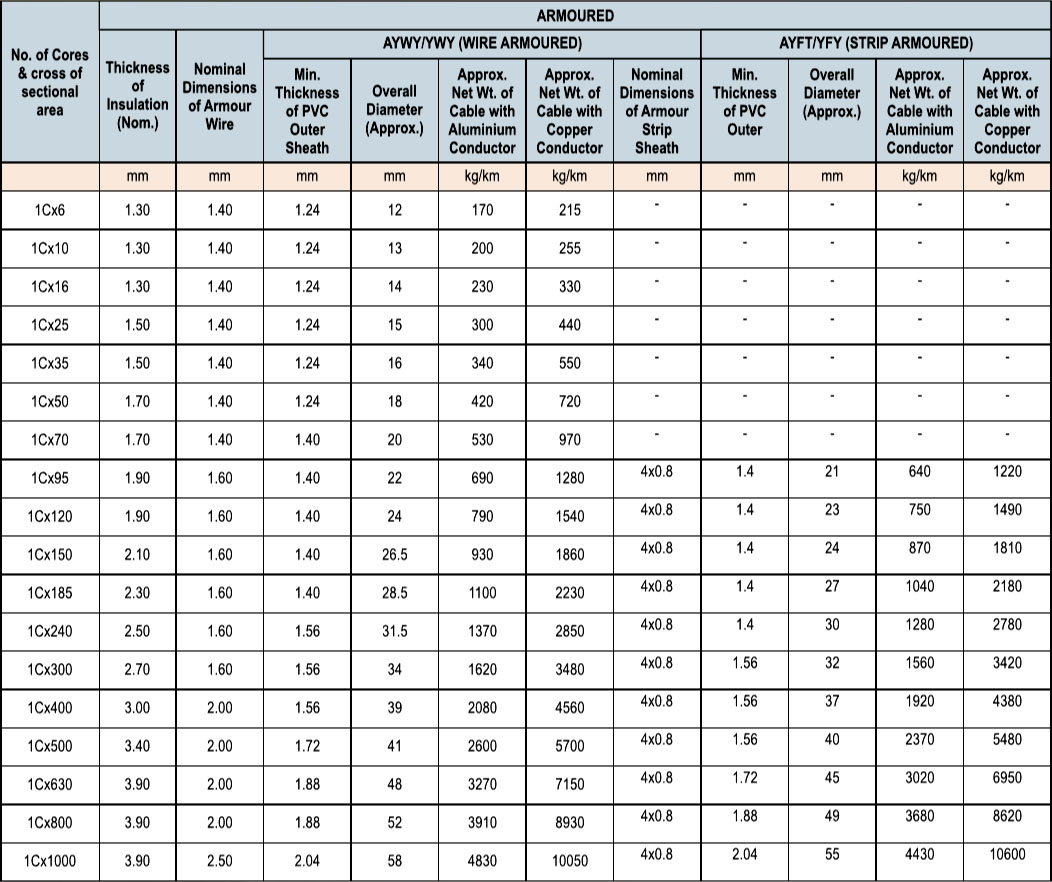

1 CORE 1.1 KV ALUMINIUM/COPPER PVC INSULATED ARMOURED POWER CABLES

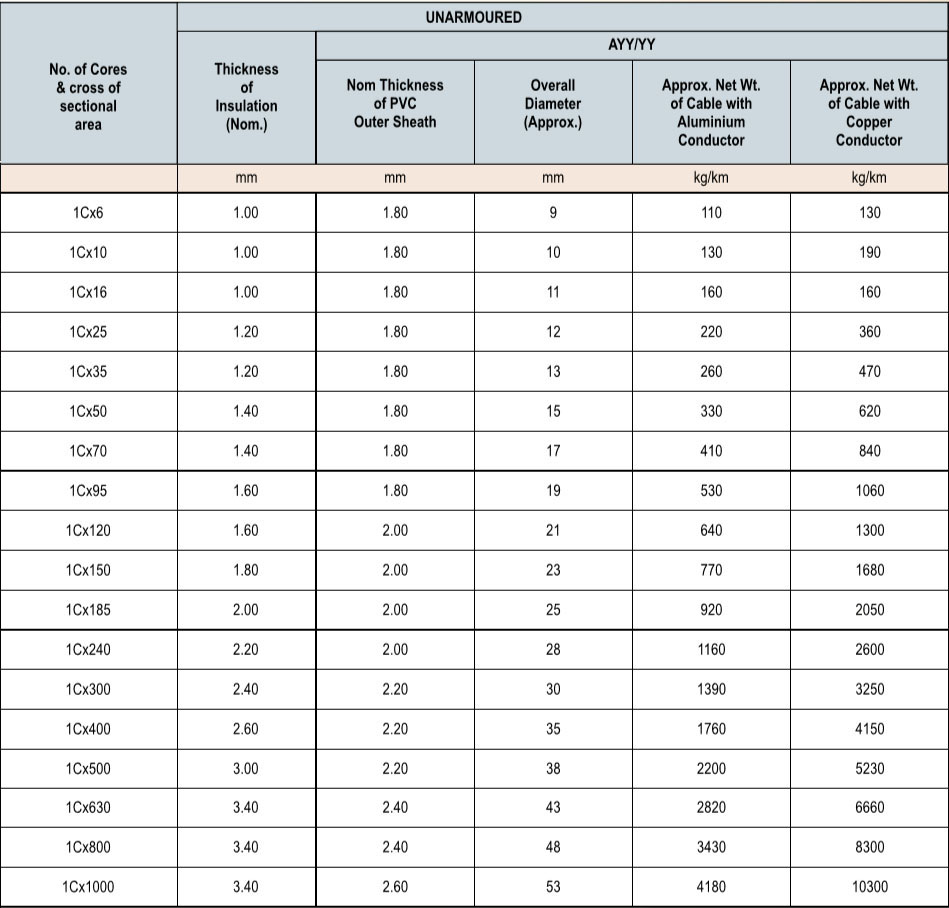

1 CORE 1.1 KV ALUMINIUM/COPPER PVC INSULATED UNARMOURED POWER CABLES

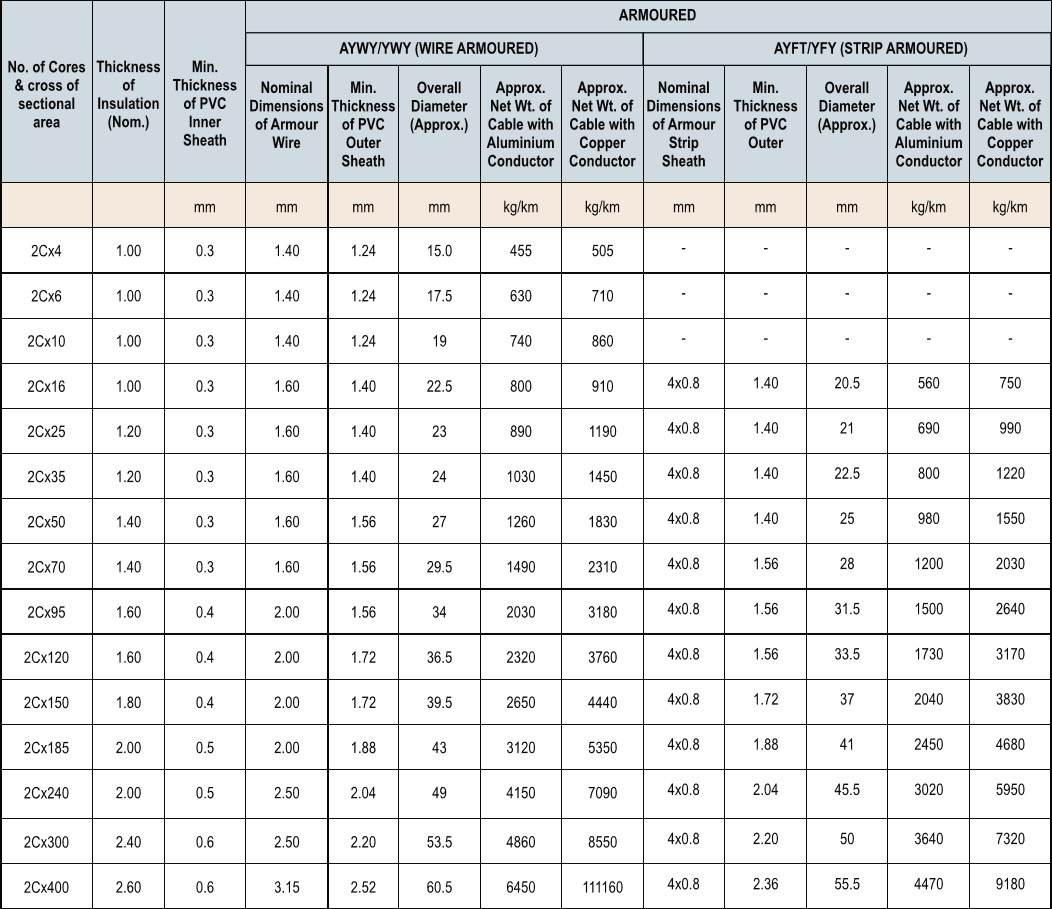

2 CORE 1.1 KV ALUMINIUM/COPPER PVC INSULATED ARMOURED POWER CABLES

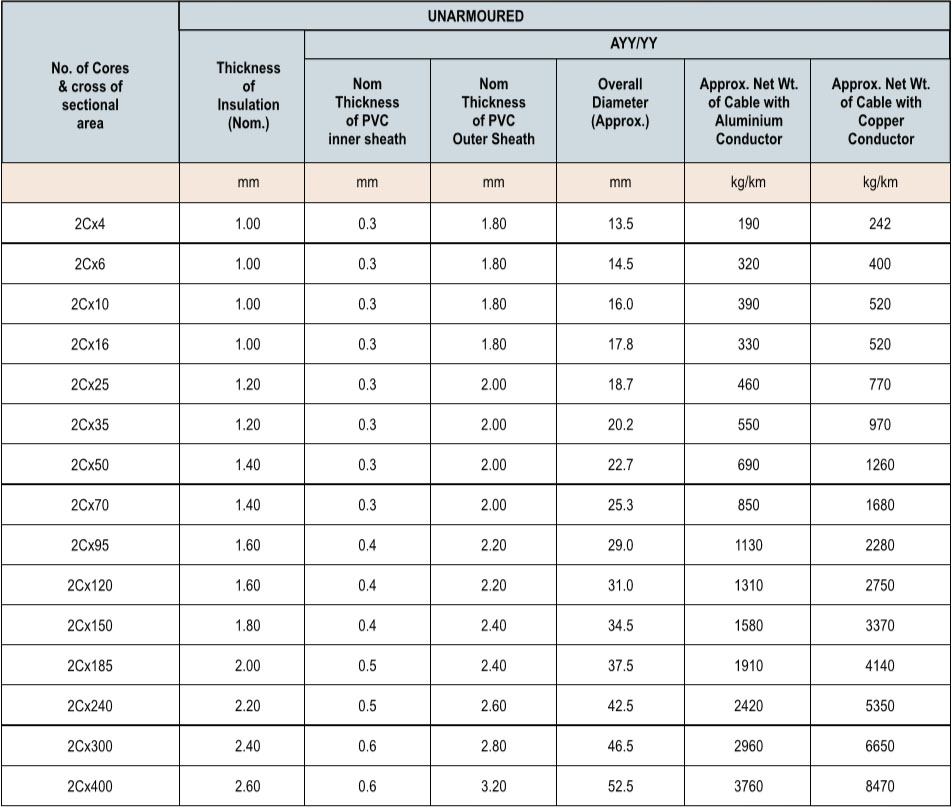

2 CORE 1.1 KV ALUMINIUM/COPPER PVC INSULATED UNARMOURED POWER CABLES

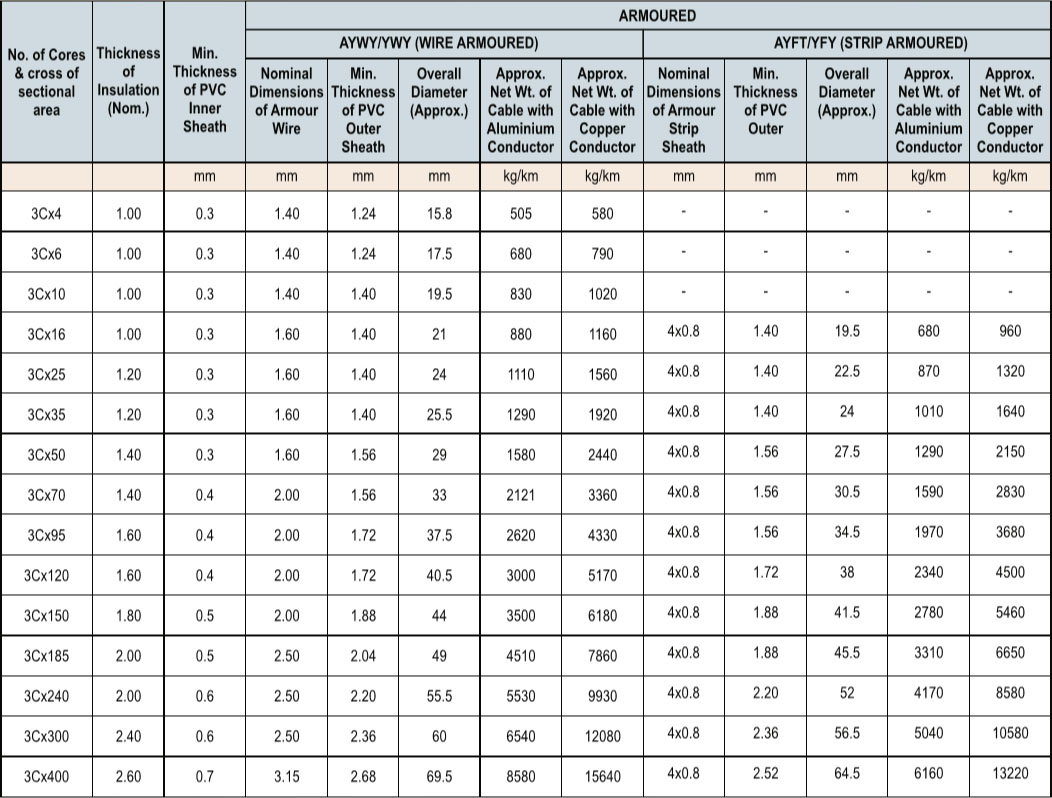

3 CORE 1.1 KV ALUMINIUM/COPPER PVC INSULATED ARMOURED POWER CABLES

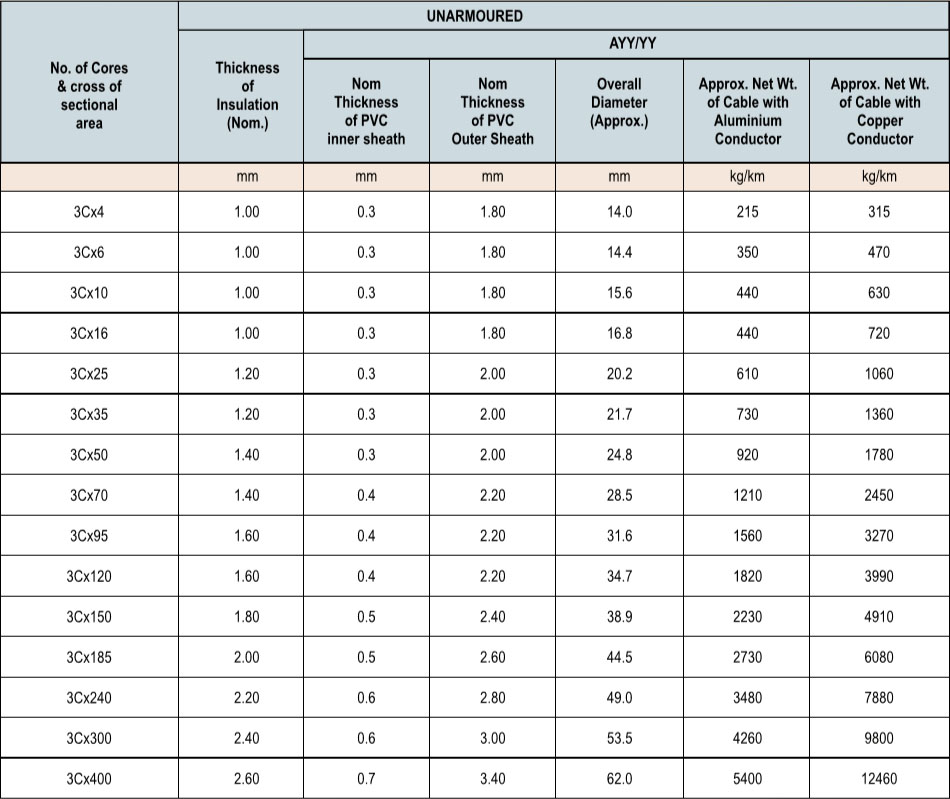

3 CORE 1.1 KV ALUMINIUM/COPPER PVC INSULATED UNARMOURED POWER CABLES

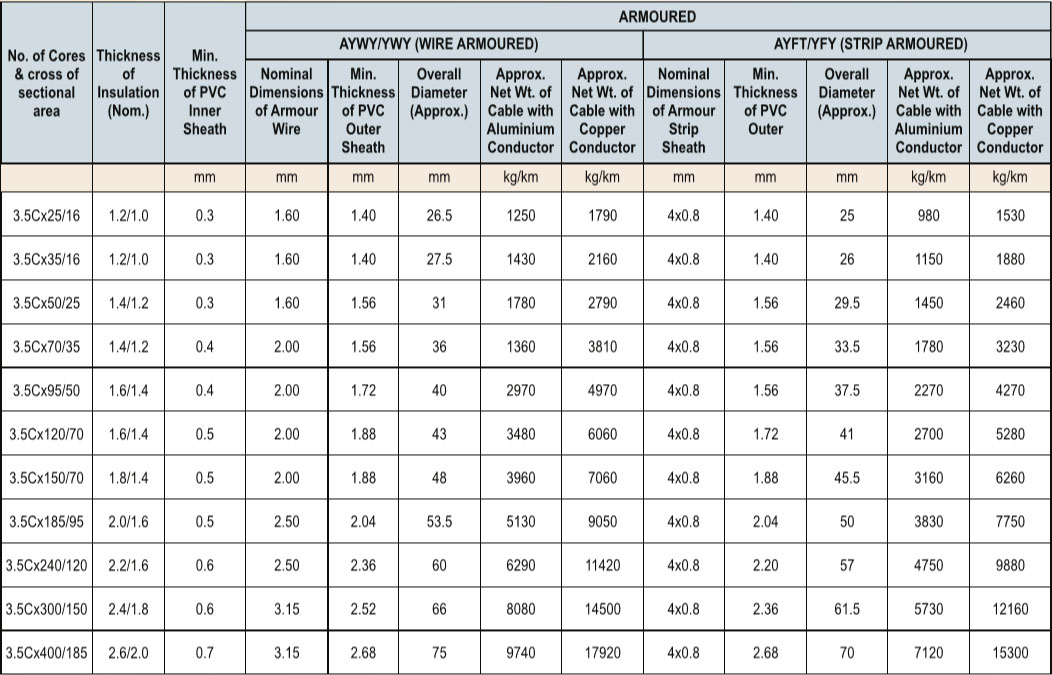

3.5 CORE 1.1 KV ALUMINIUM/COPPER PVC INSULATED ARMOURED POWER CABLES

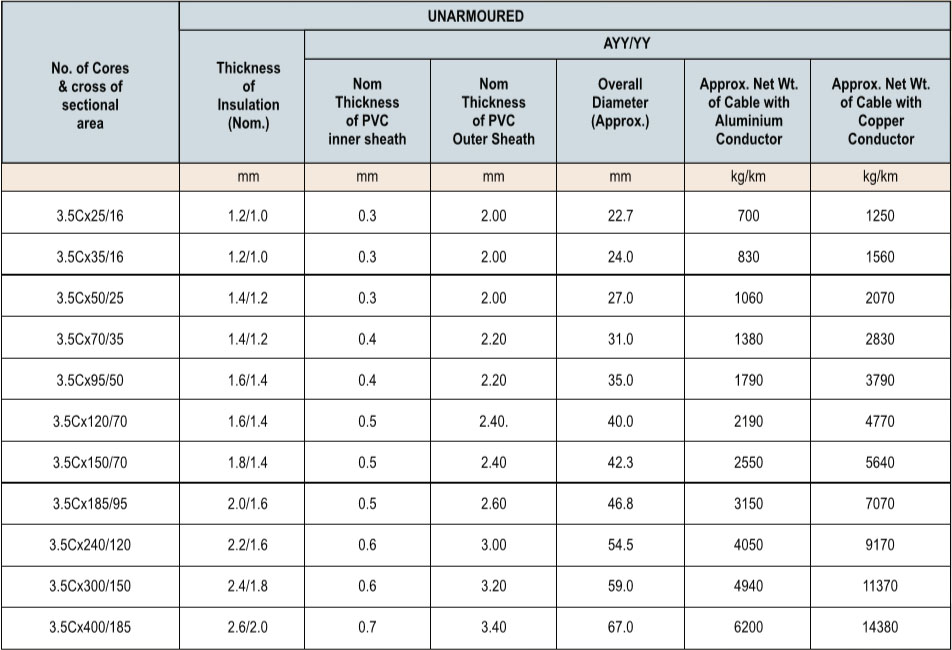

3.5 CORE 1.1 KV ALUMINIUM/COPPER PVC INSULATED UNARMOURED POWER CABLES

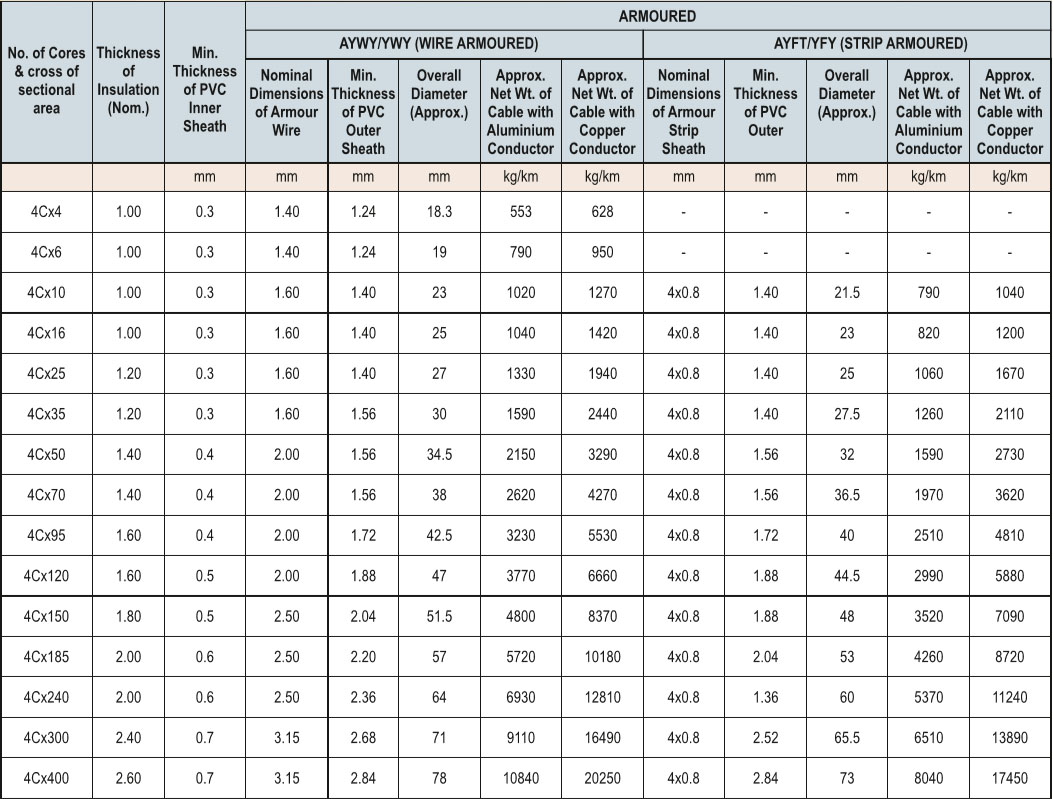

4 CORE 1.1 KV ALUMINIUM/COPPER PVC INSULATED ARMOURED POWER CABLES

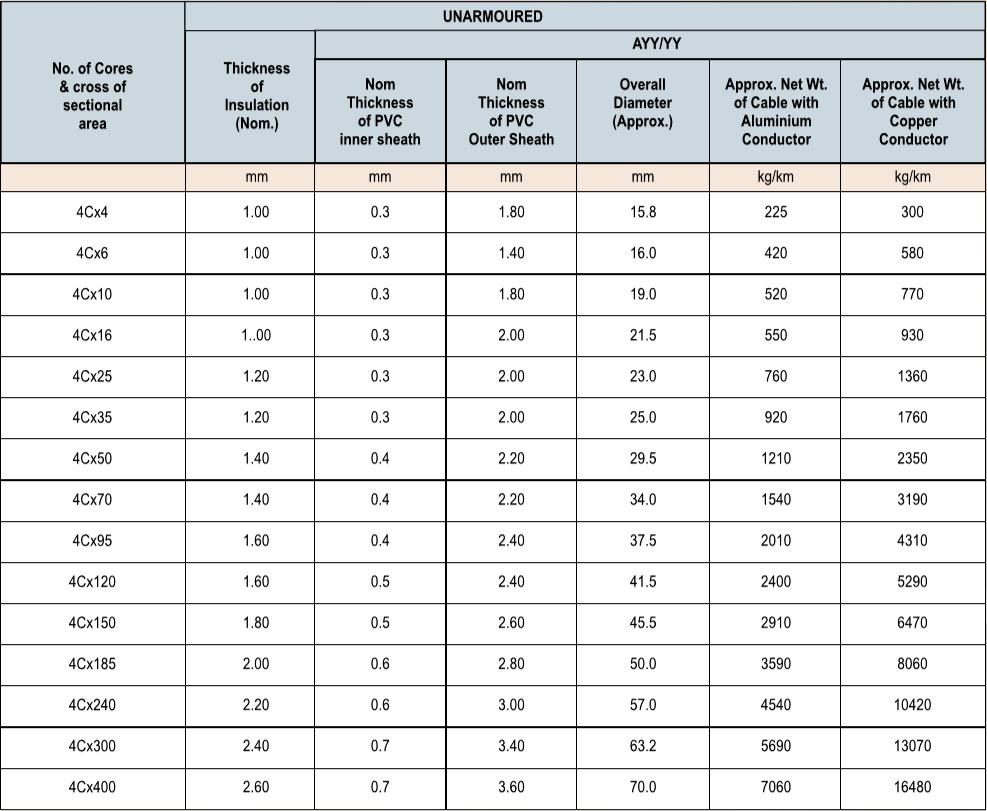

4 CORE 1.1 KV ALUMINIUM/COPPER PVC INSULATED UNARMOURED POWER CABLES

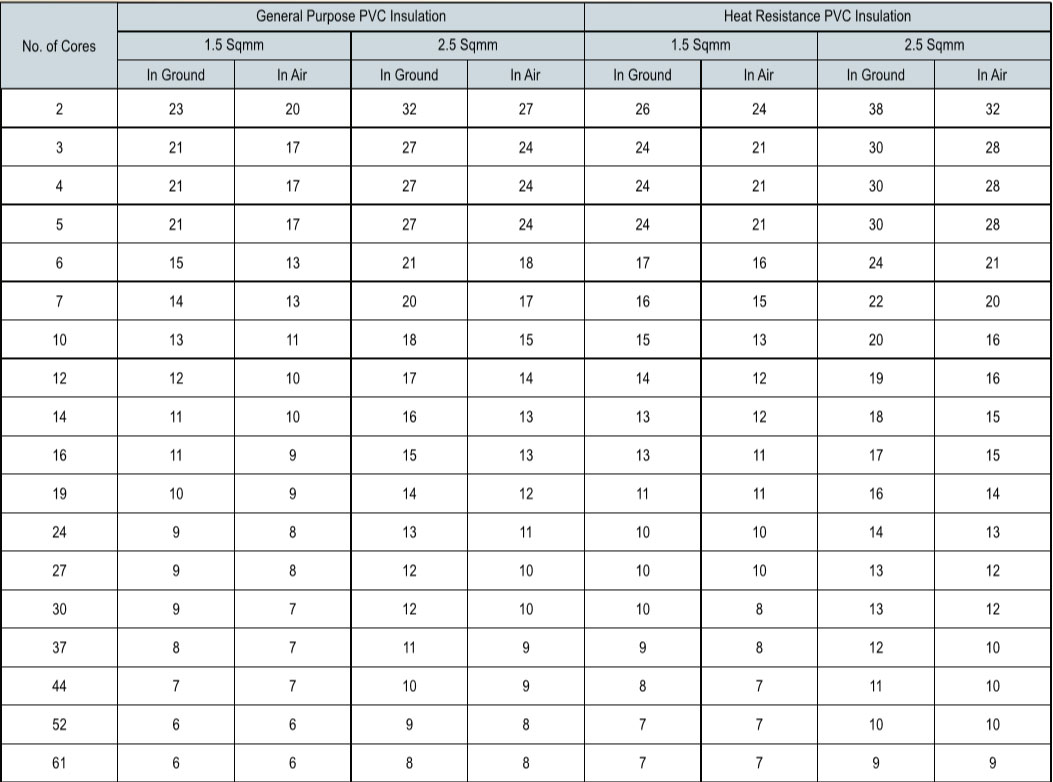

CURRENT RATING FOR 1.1 KV COPPER CONDUCTOR PVC INSULATED CONTROL CABLES (IN AMP)

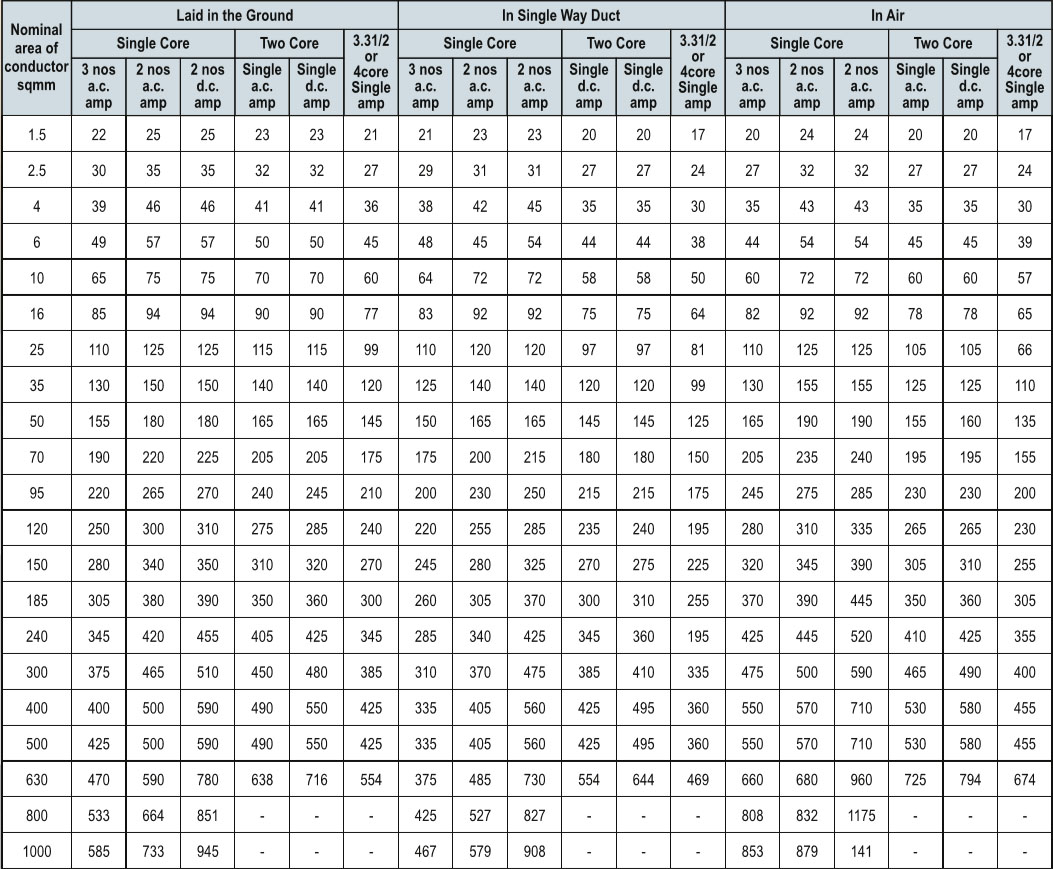

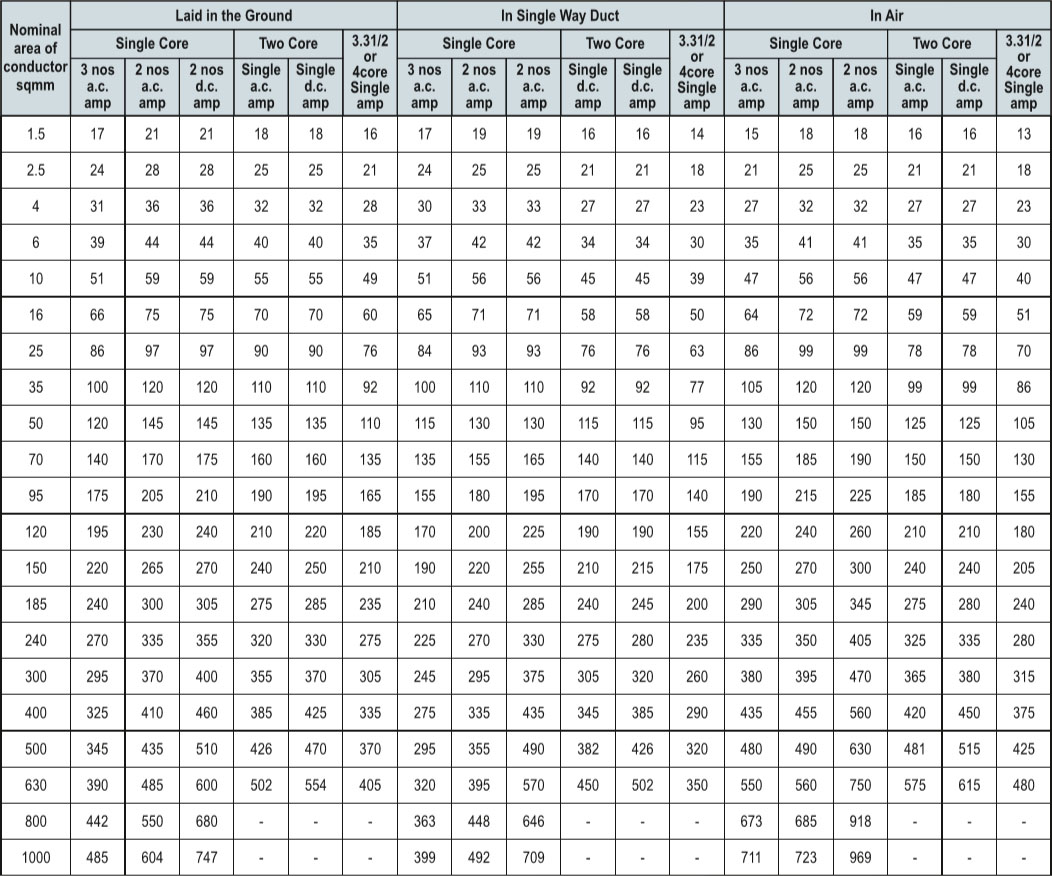

CURRENT RATING FOR ALUMINIUM CONDUCTOR ARMOURED/UNARMOURED PVC POWER CABLES (IN AMPS) FOR MAX. CONDUCTOR TEMP. 70⁰C

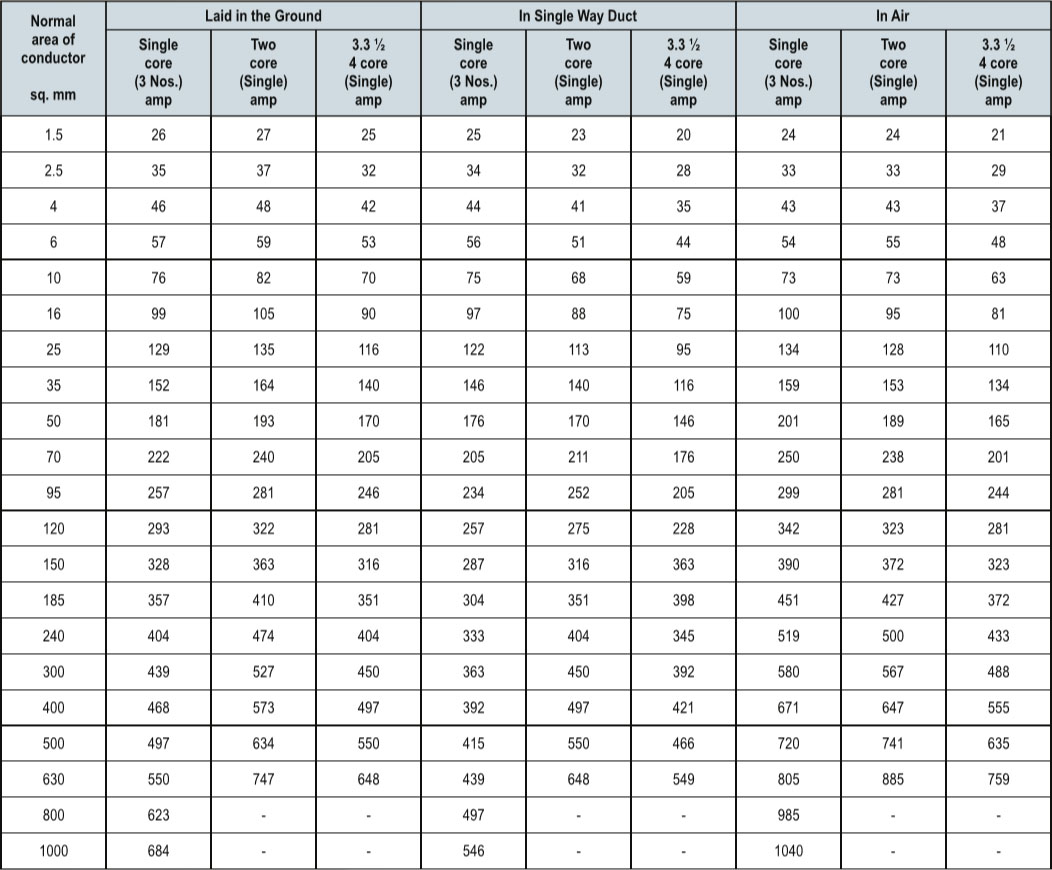

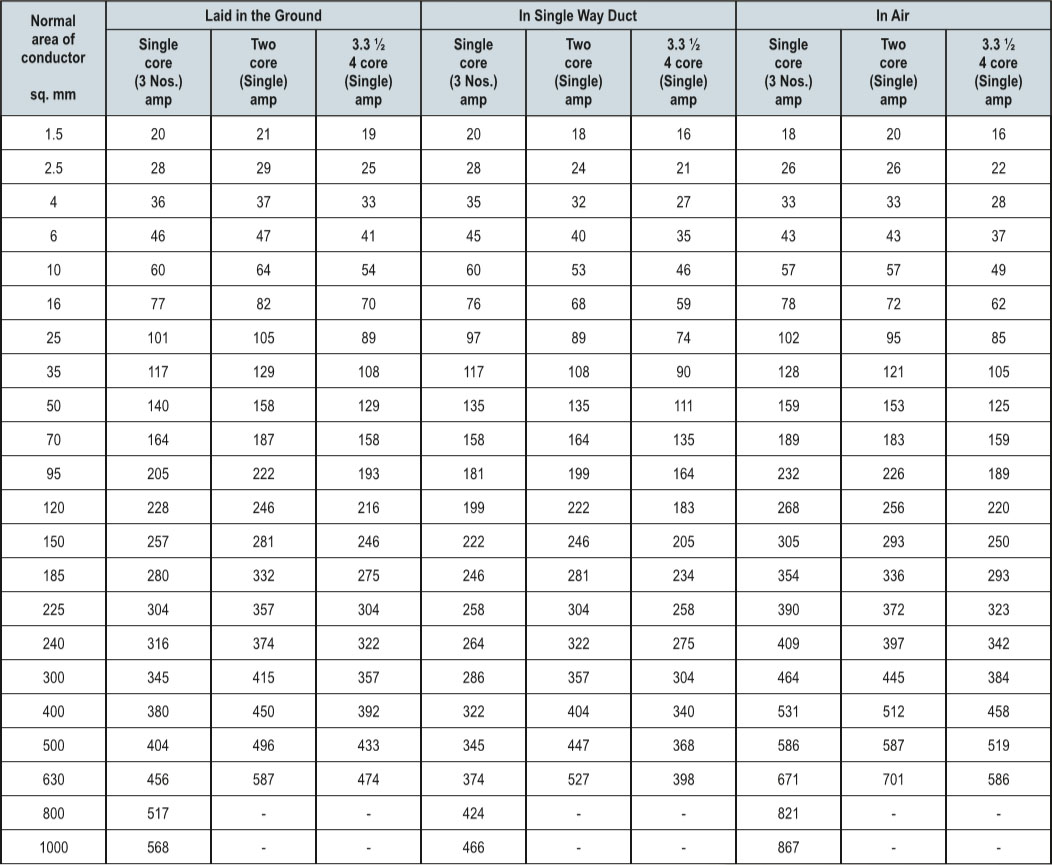

CURRENT RATING FOR COPPER CONDUCTOR ARMOURED/UNARMOURED PVC POWER CABLES (IN AMPS) FOR MAX. CONDUCTOR TEMP. 70⁰C

CURRENT RATING FOR ALUMINIUM CONDUCTOR ARMOURED/UNARMOURED PVC POWER CABLES (IN AMPS) FOR MAX. CONDUCTOR TEMP. 85⁰C

CURRENT RATING FOR COPPER CONDUCTOR ARMOURED/UNARMOURED PVC POWER CABLES (IN AMPS) FOR MAX. CONDUCTOR TEMP. 85⁰C

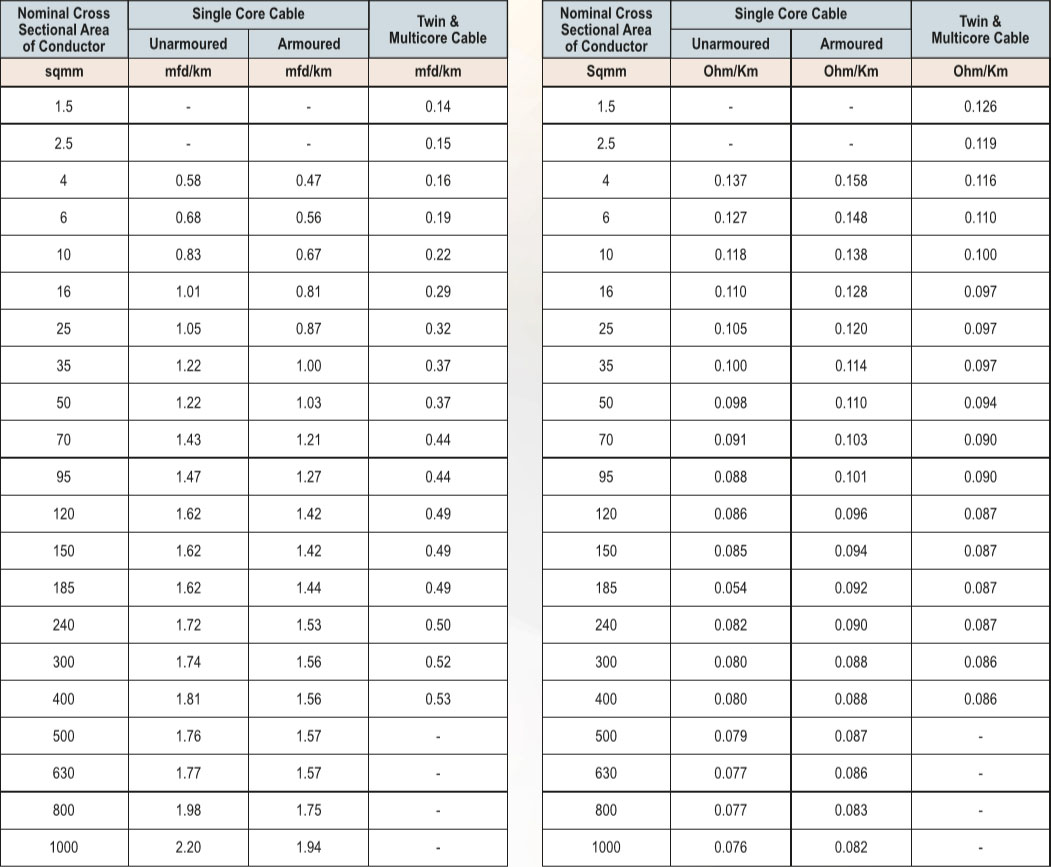

CAPACITANCE/REACTANCE OF 1.1 KV GRADE PVC INSULATED CABLES

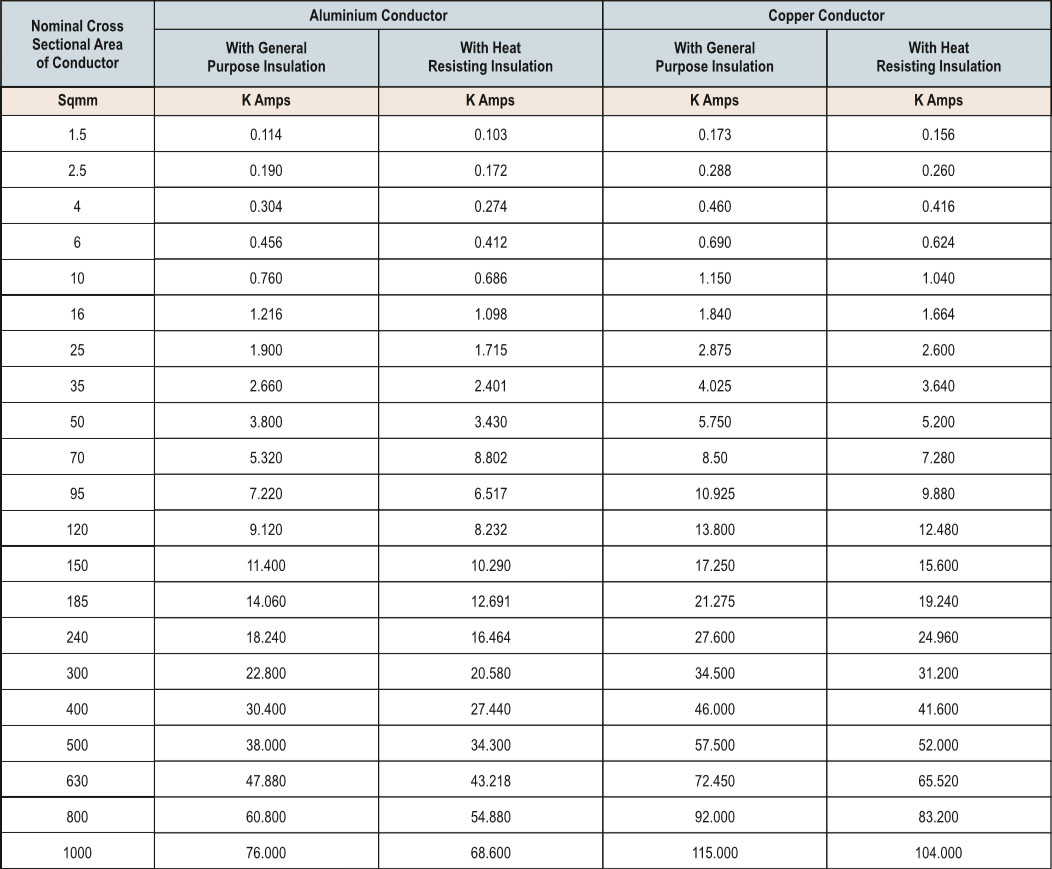

SHORT CIRCUIT RATING OF 1.1 KV GRADE PVC INSULATED CABLES (FOR DURATION OF ONE SECOND)

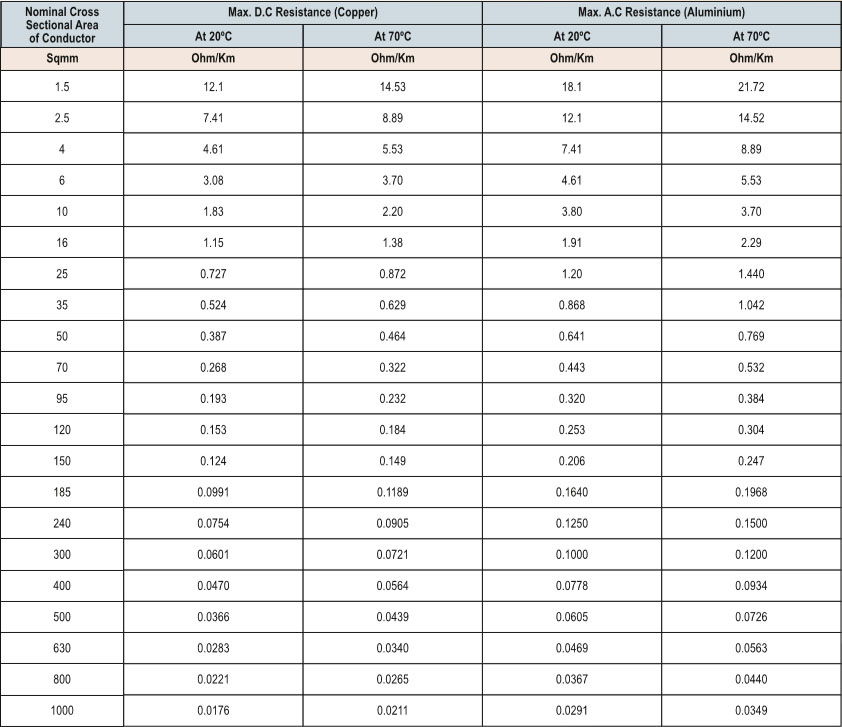

MAXIMUM A.C/D.C RESISTANCE OF CONDUCTOR FOR PVC CABLES IN OHM/KM

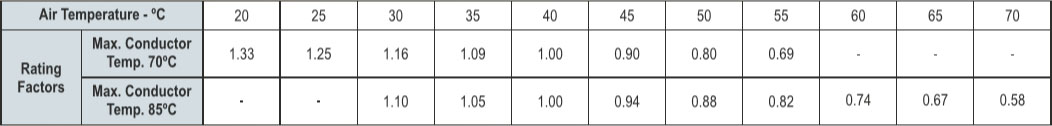

RATING FACTORS FOR VARIATION IN AMBIENT AIR TEMPERATURE

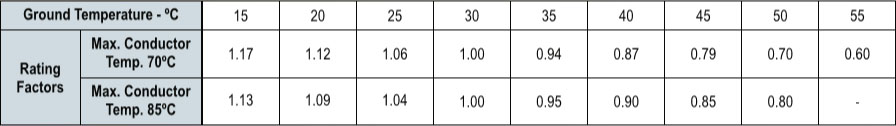

RATING FACTORS FOR VARIATION IN GROUND TEMPERATURE FOR CABLES LAID DIRECT IN THE GROUND AND IN DUCTS

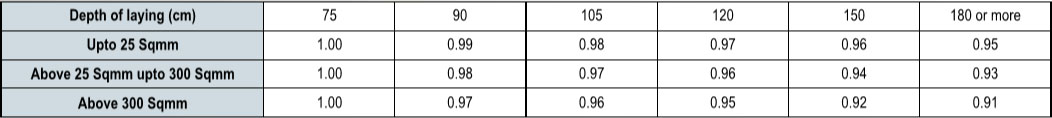

RATING FACTORS FOR DEPTH OF LAYING FOR CABLES

RATING FACTORS FOR DEPTH OF LAYING (TWIN MULTOCORE CABLES IN SINGLE WAY DUCTS)

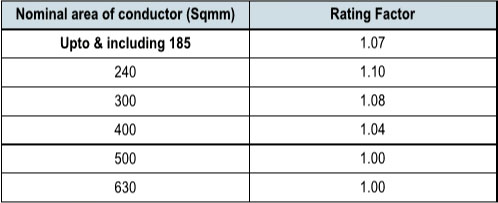

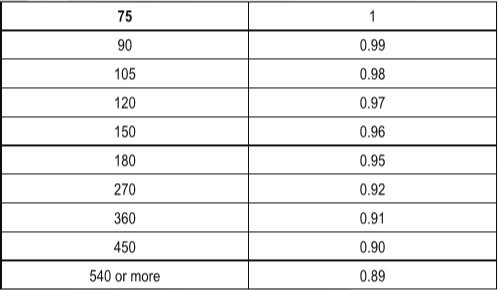

RATING FACTORS FOR THE SINGLE CORE CABLES (AC) IN FLAT FORMATION IN AIR

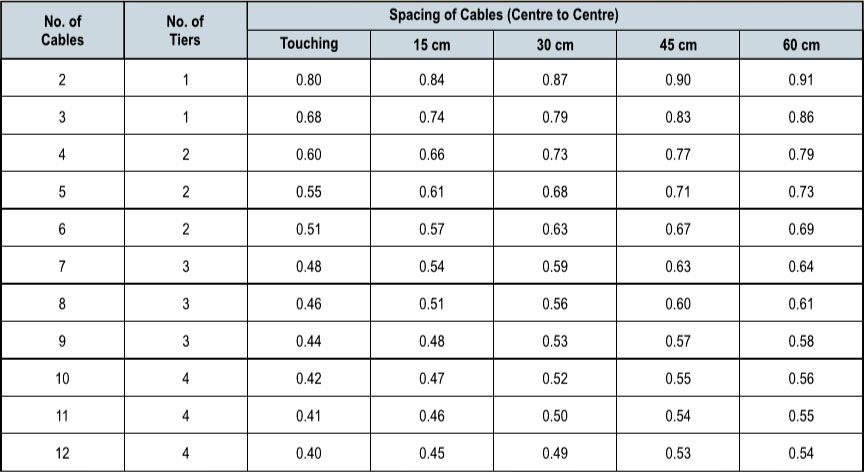

GROUP RATING FACTORS FOR TWIN AND MULTI-CORE CABLES IN TIER FORMATION LAD DIRECT IN THE GROUND
